TS 460/TS 642/ TS 740

    Specifications

    Radio and infrared

    Infrared

    Workpiece touch probe

    TS 460

    TS 642

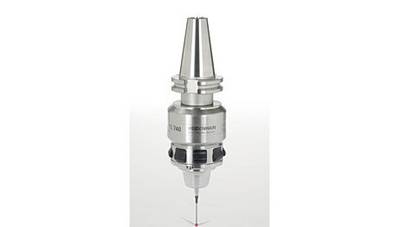

    TS 740

    Probe accuracy

    ±5 µm with use of the T404 standard stylus

    ±1 µm with use of the T404 standard stylus

    Probe repeatability

    Repeated probing from one direction

    2 s 1 µm at a probing velocity of 1 m/min

    Typical values:

    2 s 1 µm at a probing velocity of 3 m/min

    2 s 4 µm at a probing velocity of 5 m/min

    2 s 0.25 µm
    at a probing velocity of 0.25 m/min

    Deflection of probe contact

    5 mm in all directions (with stylus length L = 40 mm)

    Deflection forces

    Axial:  8 N

    Radial:  1 N

    Axial:  0.6 N

    Radial:  0.2 N

    Probing velocity

    5 m/min

    0.25 m/min

    Collision protection

    Optional

    Protection EN 60529

    IP68

    Operating temperature

    10 °C to 40 °C

    Storage temperature

    –20 °C to 70 °C

    Mass without taper shank

     0.2 kg

     1.1 kg

    Fastening*

    • With taper shank 1)
    • Via M12x0.5 external thread
    • With taper shank 1)
    • Without taper shank (M30x05 connecting thread)

    Signal transmission

    Radio and infrared transmission (selectable) with 360° emission to the SE

    Infrared transmission with 360° emission

    Radiation angle of the infrared signal*

    0° or +30°

    TS switch-on/off

    Radio or infrared signal (selectable) from SE

    Via switch in the taper shank or infrared signal from SE

    Infrared signal from SE

    Power supply

    Two rechargeable or nonrechargeable batteries, 1 V to 4 V each; size 1/2 AA or size LR2

    Two rechargeable or nonrechargeable batteries, 1 V to 4 V each; size C or size A4)

    Operating time

    Typically 90 h3) with alkaline batteries (included in delivery);

    typically 400 h3) possible with lithium batteries

    Typically 400 h with alkaline batteries (included in delivery);

    typically 800 h possible with lithium batteries

    Typically 220 h with alkaline batteries (included in delivery);

    typically 500 h possible with lithium batteries

    Transceiver*

    • SE 6612)/SE 660 for radio and infrared transmission
    • SE 642 for infrared transmission
    • SE 540 for infrared transmission; for integration in the spindle head

    SE 540, SE 642, or SE 660 (only infrared)

    SE 540 or SE 642

    Interface*

    HTL, EnDat 2.2

    HTL

    * Please select when ordering

    1) See Mounting on page 18

    2) With EnDat interface

    3) Reduced operating time in the presence of high ambient radio traffic or with frequent, short probing intervals

    4) Via adapter, included in delivery
