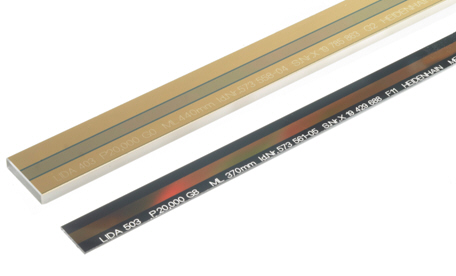

LIDA 400 measuring standard
Linear scale LIDA 403 340 G8 5.0 ML/2 .. 20.000 K
|
Ident number
|
573553-02 |
| Grating period |
20.000 µm
|
| Thermal coefficient of linear expansion |
~ 8·10-6K-1
|
| Accuracy grade |
± 5.0 µm
|
| Measuring length |
340 mm
|
| Reference mark position |
in the middle of the
measuring length
|
| Fastening type |
adherable
|
| Thickness |
2.90 mm
|
| Width |
15.00 mm |
