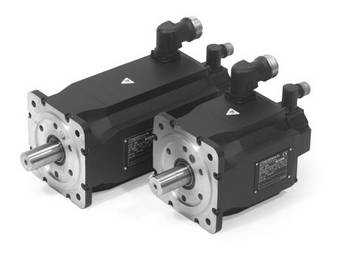

QSY 155

    Specifications

    Motor

    QSY 155 B

    QSY 155 C

    QSY 155 D

    QSY 155 F

    Rated voltage UN

    298 V/295 V

    294 V/291 V

    293 V/291 V

    289 V/287 V

    Rated power output PN

    2.9 kW/2.6 kW

    3.9 kW/3.5 kW

    4.6 kW/4.1 kW

    5.2 kW/4.7 kW

    Rated speed nN

    3000 rpm

    Rated torque MN1)

    9.2 Nm/8.3 Nm

    12.5 Nm/11.3 Nm

    14.8 Nm/13.3 Nm

    16.7 Nm/15.0 Nm

    Rated current IN1)

    6.9 A/6.2 A

    8.7 A/7.8 A

    10.6 A/9.5 A

    12.0 A/10.8 A

    Stall torque M01)

    13.0 Nm

    17.7 Nm

    21.6 Nm

    26.1 Nm

    Stall current I01)

    9.1 A

    11.8 A

    14.6 A

    18.0 A

    Max. speed nmax

    5000 rpm

    Max. torque Mmax2)

    39 Nm

    52 Nm

    64 Nm

    90 Nm

    Max. current Imax2)

    29.7 A

    38.9 A

    49.5 A

    68.6 A

    Mass m

    15.0 kg

    18.0 kg

    17.5 kg

    20.5 kg

    20.0 kg

    23.0 kg

    25.0 kg

    28.0 kg

    Rotor inertia J

    33 kgcm2

    35 kgcm2

    43 kgcm2

    45 kgcm2

    54 kgcm2

    56 kgcm2

    75 kgcm2

    77 kgcm2

    Brake

    Rated voltage UBr

    Rated current IBr

    Holding torque MBr

    Without

    With

    DC 24 V

    1.04 A

    40 Nm

    Without

    With

    DC 24 V

    1.04 A

    40 Nm

    Without

    With

    DC 24 V

    1.04 A

    40 Nm

    Without

    With

    DC 24 V

    1.04 A

    40 Nm

    ID

    For motor with ERN 1387

    For motor with EQN 1325

    339880-0C

    339880-5C

    339880-0D

    339880-5D

    365308-0C

    365308-5C

    365308-0D

    365308-5D

    339881-0C

    339881-5C

    339881-0D

    339881-5D

    339882-0C

    339882-5C

    339882-0D

    339882-5D

    1) At 100 K 2) Max. 200 ms

    Italics: Data for motors with EQN 1325 (rated torque reduced by 10 %)
