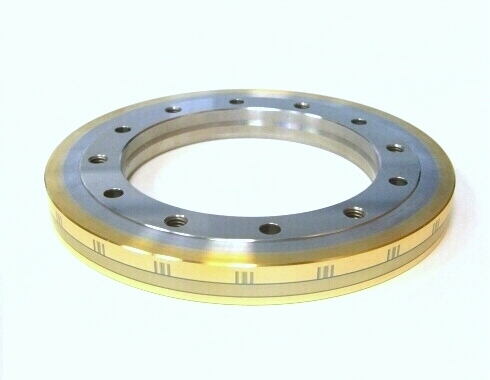

Incremental angle encoder with magnetic scanning - Scale drum
TTR ERA 4400 26000 RA A4308 00 01 .. 1R 01 40.000
|
Ident number
|
532728-07 |
| without integral bearing Line count |
26000
|
| Grating period |
40.000 µm
Accuracy of the
|
| graduation |
± 2.5 ''
|
| Geometry of drum |
Outside Ø 331.31 mm, inside Ø 270 mm, hole
circle Ø 290 mm, 12 holes
Ø 5.5 mm, with centering
collar
|
| Reference mark |
1 reference mark
Mechanical permissible
speed without mechanical
|
| fault exclusion |
4750 min-1
Mechanical permissible
speed with mechanical
|
| fault exclusion |
2500 min-1 |
