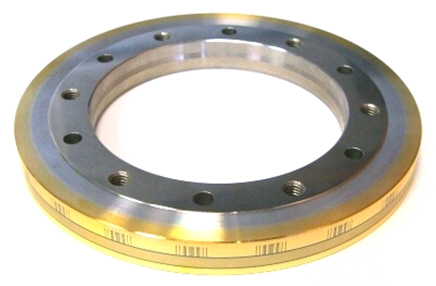

Incremental angle encoder with magnetic scanning - Scale drum
TTR ERA 4200 12000 RA A3708 00 01 .. 1R 01 20.000
|
Ident number
|
532727-01 |
| without integral bearing Line count |
12000
|
| Grating period |
20.000 µm
Accuracy of the
|
| graduation |
± 5.0 ''
|
| Geometry of drum |
Outside Ø 76.75 mm, inside Ø 40 mm, hole
circle Ø 50 mm, 6 holes Ø
5.5 mm, with centering
collar
|
| Reference mark |
1 reference mark
Mechanical permissible
speed without mechanical
|
| fault exclusion |
20000 min-1
Mechanical permissible
speed with mechanical
|
| fault exclusion |
10000 min-1 |
