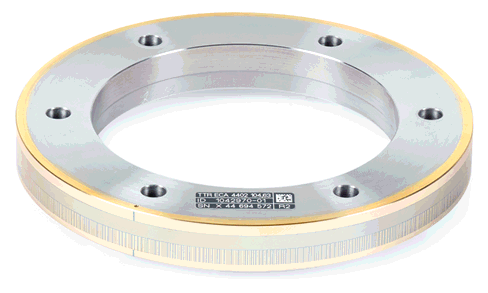

ECA 4000 series – Absolute angle encoder with high accuracy
TTR ECA 4402 254.93 210.00 19998 00 01 ..
|
Ident number
|
1042970-05 |
| Line count |
19998
Accuracy of the
|
| graduation |
± 1.8''
|
| Geometry of drum |
Outside Ø 254.93 mm, inside Ø 210 mm, hole
circle Ø 230 mm, 12 holes
Ø 3.7 mm, without
centering collar
Mechanical permissible
|
| speed |
6250 min-1 |
