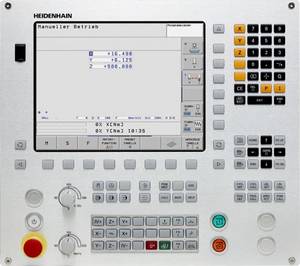

TNC 128 – The Compact Straight-Cut Control for Milling, Drilling and Boring Machines

The TNC 128 is a compact but versatile straight-cut control for three servo axes and servo spindle. A further servo axis is an option. Thanks to its simple operation and scope of features, it is especially well suited for use on universal milling, drilling and boring machines for

  • series and single-part production,
  • machine building,
  • prototypes and pilot plants,
  • repair departments, and
  • training and education facilities

Workshop-oriented programming
Workshop-oriented programming is an important attribute of the TNC 128, particularly since the TNC controls are rooted in the workshop.

In the past years, machining processes have become more complex, and the machines themselves more powerful. Throughout, the basic operation of the TNC controls has remained the same despite their continued development and improvement.

The proven operation is also the basis for the user-friendly programming of the TNC 128, since it assists you during program creation with help graphics, practical prompts, machining cycles and cycles for coordinate transformation.

Simple operation
For simple work, such as face milling, you need not write a program on the TNC 128. It is just as easy to operate the machine manually by pressing the axis keys or—for maximum sensitivity—using the electronic handwheel.

Offline program creation
The TNC 128 can be programmed remotely just as well. Your Fast Ethernet interface guarantees very short transfer times, even of long programs
